2 kW Home.Sure Package

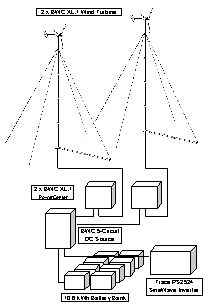

We recommend this package for homeowners and small businesses that want protection from extended power outages, but don't need a system as large as the 7.5 kW Home.Sure system. This capability requires the addition of batteries and a sophisticated inverter. The Home.Sure system keeps the batteries charged up and during an outage home power is supplied by both the batteries and the wind turbines. In regular (non-outage) operation any excess energy, once the batteries are charged, is sold to the utility company or "stored" by utilities offering net metering. This package uses 60 ft towers because this is the shortest tower height for the XL.1 turbine. The taller the tower the better and towers shorter than 60 ft. should only be used in special circumstances. The Tubular Tilt-up towers can be installed without concrete and they tilt-up after all the assembly work is done on the ground. The batteries are Trojan T-105's, a workhorse of the home power industry. A total of eight individual batteries are connected in two parallel strings of four batteries in series (24 VDC nominal). This battery bank will support essential loads (lights, radio, TV, refrigerator, freezer, water pump, and blowers) for 4 - 12 hours without wind energy input. The OutBack GTFX2524 sine-wave inverter provides 2.5 kW at 120 VAC (or 230 VAC, 50 Hz at 2.2 kW) and has enough surge capacity to start motors up to ~ 1 Hp. A back-up engine generator can be easily added. In addition to the equipment costs given below, a complete installation will typically include the following costs: shipping, sales tax, permit costs, foundation and anchoring, wire run, turbine and tower erection, battery racks or vault, electrical hook-up, and inspection fees. Some homeowners also incorporate a back-up gas, propane, or diesel generator into the system for maximum protection. Your dealer or Bergey WindPower can assist you in budgeting these additional costs. For budgeting purposes, these costs typically range from $3,000 (customer installed, no sales tax, etc) to $9,000 (Certified Dealer, sales tax, etc).
|
