Sunny Boy 700U
The Sunny Boy 700U was SMA’s first mass-produced string inverter and it continues to enjoy immense popularity in today’s solar market. Its compact size and economical price make it ideal for starter or demonstration systems. It is also perfectly suited for adding a bit more power to an existing solar system. Its modular design makes expansion to almost any size system easy. Three different configurable input voltage ranges make the Sunny Boy 700U a versatile choice, whatever your system configuration.
Features
- Certified to the new UL 1741/IEEE 1547
- 10-year warranty standard
- Comprehensive SMA communications and data collection options
- Rugged stainless steel enclosure
- Exceptional reliability and energy capture ratio
- Easy to install three-point mounting system
- Modular design is easily expandable
Data Sheet
Sunny Boy 3000US/4000US
The Sunny Boy 3000US and 4000US are the first of the new “US” series of Sunny Boy string inverters. They have been updated with SMA's most advanced technology and are designed specifically to meet the new IEEE 1547 requirements.
Their compact design makes them ideal for light commercial or residential use and the integrated DC disconnect makes installation more cost-effective. They are field configurable for positive ground systems making them more versatile than ever. Increased efficiency means better overall performance and shorter payback periods. Each are engineered d built to last and now come with a standard ten-year warranty. Sunny Boy inverters are trusted worldwide to go the distance.
Features
- CEC efficiency of up to 96%
- 10-year warranty standard, up to 20 years optional
- Certified to the new UL 1741 / IEEE 1547
- Integrated load-break rated DC disconnect switch
- Integrated fused series string combiner
- Sealed electronics enclosure and OptiCool
- Comprehensive SMA communications and data collection options
- Ideal for residential or light commercial applications
- Rugged cast aluminum outdoor rated enclosure
Data Sheet
back to top

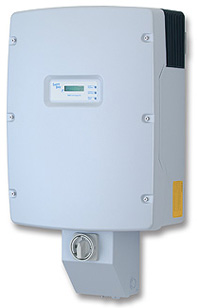

Sunny Boy 5000US/6000US/7000US
The Sunny Boy 5000US, 6000US and 7000US represent SMA's larger units in the new “US” series of Sunny Boy string inverters. They are extremely robust inverters equally suited for large residential or commercial applications. Completely updated with SMA's most advanced technology, they were designed specifically to meet the new IEEE 1547 requirements. The larger inverters of the new US series come with an integrated AC and DC disconnect switch making installation even more cost-effective. They can even be configured for positive ground systems in the field making them more versatile than ever. Increased efficiency means better overall performance and shorter payback periods. The Sunny Boy 6000US and 7000US are compatible for use with the Sunny Tower 36 kW and 42 kW systems. Each comes with a standard ten year warranty and are engineered and built to provide years of trouble-free service.
Features:
- 96% CEC weighted efficiency
- 10-year standard warranty
- Certified to the new UL 1741/IEEE 1547
- Integrated load-break rated DC disconnect switch
- Integrated fused series string ombiner
- Sealed electronics enclosure and OptiCool
- Comprehensive SMA communications and data collection options
- Ideal for residential or commercial applications
- Rugged cast aluminum outdoor rated enclosure
Data Sheet back to top |
