For 45 years, Sharp's photovoltaic research and development has led to numerous innovations and has made them the # 1 manufacturer in solar cells world wide.
Sharp's solar modules offer industry-leading performance and proprietary design. They boast a high conversion efficiency - more sunlight is converted to energy - and a lifespan measured in decades, to maximize your investment. Sharp offers rectangular and the industry's first triangular module, the 70 Watt series. A Sharp system can be customized to maintain or even enhance the beauty of your home.
The warranty period for material defects and workmanship is one year from date of purchase. The warranty period with respect to power output continues for a total of 25 years from date of purchase, the first 10 years at 90 % minimum rated power output and the balance of 15 years at 80% minimum rated power output.
Basic Module Features are:
Built-in bypass diodes minimize any power drop caused by shade
BSF (Black Surface Field) structure to improve cell conversion efficiency
UL Listings: UL 1703, cUL
Modules sold in the USA , are assembled in the USA
Modules are manufactured in ISO 9001 certified facilities
62 Watt Shingle Panel
Aesthetic Appeal – Efficient Installation
Features
High-power module (62W) using 155mm square poly-crystal silicon solar cells
These solar roof shingles are quick and easy to integrate into the roof in the same manner as common, flat concrete tiles
No additional framing materials or extra roof penetrations are required because the module brackets screw to the existing roof battens
Compatible with most roof tiles used in new residential construction, like Eagle and Monier, each solar roof module replaces five concrete tiles
Sharp's advanced surface texturing process increases light absorption and efficiency while providing a more subdued, “natural” look
Non-reflective white tempered glass, EVA resin, weatherproof film and black double-anodized aluminum frame for extended outdoor use
Sharp modules are manufactured in ISO 9001 certified facilities
25-year limited warranty on power output
Specifications
Maximum Power (Pmax)*: |
62 W |
Type of Cell: |
Polycrystalline silicon |
Cell Configuration: |
18 in series |
Open Circuit Voltage (Voc): |
10.9 V |
Maximum Power Voltage (Vpm): |
8.7 V |
Short Circuit Current (Isc): |
7.9 A |
Maximum Power Current (Ipm): |
7.04 A |
Maximum System (DC) Voltage: |
600 V |
Series Fuse Rating: |
15 A |
Type of Output Terminal: |
Lead wire with ONAMBA connector |
back to top
72 Watt Triangle
Residential 72 watt module from the world's trusted source for solar
Designed to partner with the 142 watt module in the Sharp OnEnergy solar system, our exclusive triangular module sets a new standard in aesthetics for residential hip roofs and complex roof lines. Sharp's OnEnergy system replaces the bulky look of traditional solar roof mounts with a clean, elegant appearance that blends beautifully with rooflines. Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, this module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Sharp is proud to offer innovative product choices that blend the power of solar electricity with the aesthetics of modern architecture.
Features:
Engineering Excellence
Designed for use with the 142 watt module and Sharp's OnEnergy solar racking system, this module is the perfect combination of technology and design.
Advanced Aesthetics
A Sharp exclusive, the triangular module sets a new standard in aesthetics for residential hip roofs and complex roof lines.
Durable
Tempered glass, EVA lamination and weatherproof backskin provide long-life and enhanced cell performance.
Reliable
25-year limited warranty on power output.
High Performance
This module uses an advanced surface texturing process to increase light absorption and improve efficiency.
Specifications
Maximum Power (Pmax)*: |
72 W |
Tolerance: |
+10% / -5% |
Type of Cell: |
Polycrystalline silicon |
Cell Configuration: |
21 in series |
Open Circuit Voltage (Voc): |
12.71 V |
Maximum Power Voltage (Vpm): |
10.03 V |
Short Circuit Current (Isc): |
7.89 A |
Maximum Power Current (Ipm): |
7.18 A |
Maximum System (DC) Voltage: |
600 V |
Series Fuse Rating: |
15 A |
Type of Output Terminal: |
Lead wire with MC connector |
Dimensions: |
45.86" x 38.98" x 1.81" / 1165 x 990 x 46mm |
Weight: |
23.14 lbs / 10.5 kg |
back to top
*Measured at Standard Test Conditions (STC): 25°C, 1 kW/m 2 , AM 1.5

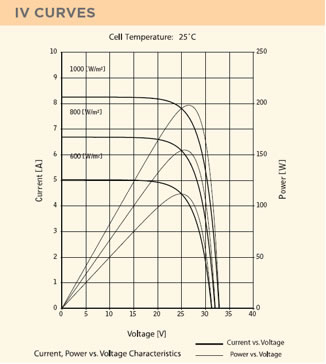

198 Watt Module
Residential 198 watt module from the world's trusted source for solar
This high-quality residential solar module is designed and engineered for use with the Sharp OnEnergy solar system. Sharp's OnEnergy system replaces the bulky look of traditional solar roof mounts with a clean, elegant appearance that blends beautifully with rooflines. Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, this module incorporates an advanced surface texturing process to increase light absorption and improve efficiency.
Features
Engineering Excellence
Designed and engineered for use with Sharp's OnEnergy solar racking system, this module is the perfect combination of technology and design.
Advanced Aesthetics
Black frame module, and associated racking with hidden hardware and tapered covers, delivers a clean, elegant appearance that blends beautifully with your home's roofline.
Durable
Tempered glass, EVA lamination and weatherproof backskin provide long-life and enhanced cell performance.
Reliable
25-year limited warranty on power output.
High Performance
This module uses an advanced surface texturing process to increase light absorption and improve efficiency.
Specifications
Maximum Power (Pmax)*: |
198 W |
Tolerance: |
+10% / -5% |
Type of Cell: |
Polycrystalline silicon |
Cell Configuration: |
54 in series |
Open Circuit Voltage (Voc): |
32.9 V |
Maximum Power Voltage (Vpm): |
26.3 V |
Short Circuit Current (Isc): |
8.23 A |
Maximum Power Current (Ipm): |
7.52 A |
Maximum System (DC) Voltage: |
600 V |
Series Fuse Rating: |
15 A |
Type of Output Terminal: |
Lead wire with MC connector |
Dimensions: |
39.1" x 58.7" x 2.3" / 994 x 1491 x 57.5mm |
Weight: |
39.6 lbs / 18.0 kg |
*Measured at Standard Test Conditions (STC): 25°C, 1 kW/m 2 , AM 1.5
Larger View
Design and specifications are subject to change without notice.
Data Sheet (PDF, 1M)
back to top

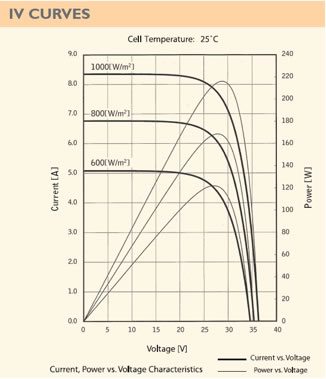

216 Watt Module
Multi-purpose 216 watt module from the world's trusted source for solar
Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp's ND-216U1F solar module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tied roof systems as well as ground mounted arrays. Designed to withstand rigorous operating conditions, this module offers high power output per square foot of solar array.
Business leaders install this module in large commercial applications, demonstrating financial astuteness and environmental stewardship.
Features
Engineering Excellence
High module efficiency for an outstanding balance of size and weight to power and performance.
Durable
Tempered glass, EVA lamination and weatherproof backskin provide long-life and enhanced cell performance.
Reliable
25-year limited warranty on power output.
High Performance
This module uses an advanced surface texturing process to increase light absorption and improve efficiency.
Specifications
Maximum Power (Pmax)*: |
216 W |
Tolerance of Pmax: |
+10% / -5% |
Type of Cell: |
Polycrystalline silicon |
Cell Configuration: |
60 in series |
Open Circuit Voltage (Voc): |
36.5 V |
Maximum Power Voltage (Vpm): |
28.9 V |
Short Circuit Current (Isc): |
8.10 A |
Maximum Power Current (Ipm): |
7.48 A |
Module Efficiency: |
13.3% |
Maximum System (DC) Voltage: |
600 V |
Series Fuse Rating: |
15 A |
Type of Output Terminal: |
Lead wire with MC connector |
Dimensions: |
39.1" x 64.6" x 1.8" / 994 x 1640 x 46mm |
Weight: |
44.1 lbs / 20.0 kg |
*Measured at Standard Test Conditions (STC): 25°C, 1 kW/m 2 , AM 1.5
Larger View
back to top
Design and specifications are subject to change without notice.

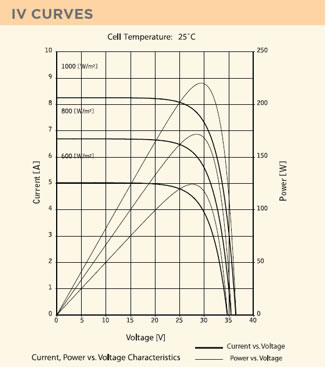

224 Watt Module
Multi-purpose 224 watt module from the world's trusted source for solar
Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp's ND-224U1F solar module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tied roof systems as well as ground mounted arrays. Designed to withstand rigorous operating conditions, this module offers high power output per square foot of solar array.
Features
Engineering Excellence
High module efficiency for an outstanding balance of size and weight to power and performance.
Durable
Tempered glass, EVA lamination and weatherproof backskin provide long-life and enhanced cell performance.
Reliable
25-year limited warranty on power output.
High Performance
This module uses an advanced surface texturing process to increase light absorption and improve efficiency.
Specifications
Maximum Power (Pmax)*: |
224 W |
Tolerance: |
+10% / -5% |
Type of Cell: |
Polycrystalline silicon |
Cell Configuration: |
60 in series |
Open Circuit Voltage (Voc): |
36.6 V |
Maximum Power Voltage (Vpm): |
29.28 V |
Short Circuit Current (Isc): |
8.33 A |
Maximum Power Current (Ipm): |
7.66 A |
Maximum System (DC) Voltage: |
600 V |
Series Fuse Rating: |
15 A |
Type of Output Terminal: |
Lead wire with MC connector |
Dimensions: |
39.1" x 64.6" x 1.8" / 994 x 1640 x 46mm |
Weight: |
44.1 lbs / 20.0 kg |
*Measured at Standard Test Conditions (STC): 25°C, 1 kW/m 2 , AM 1.5
Larger View
Design and specifications are subject to change without notice.
Data Sheet (PDF, 1M)
Sharp ND-72
Sharp ND-142 Sharp Warranty
