Kestrel Wind Turbines are a produced by a subsidiary of Eveready Ltd. The world class manufacturing setup is situated in Port Elizabeth, South Africa. The facility is ISO 9000, ISO 14000 and OHSAS 18001 certified. Kestrel specializes in the design and manufacture of small efficient wind turbines both for the local and export market. The company takes pride in manufacturing high quality products and it has been supplying products for last several years. Kestrel is virtually unique in the world of small wind turbines in their line of high quality, quiet, powerful, and robust machines in 600, 800, 1000 and 3000 Watts rated power. All Kestrel turbines feature Full Axial Flux Discoid Technology, for high efficiency and increased energy production in lower wind regimes. Eveready is a equal opportunity employer as well as a socially responsible corporate citizen committed to the vision of new South Africa. Visit the Kestrel website at www.kestrelwind.co.za/.

e150 (600W)

The Kestrel e150 has a large diameter 240 mm (9.45”) alternator driven by a 1.5 meter (4.92') 6 blade, self-stalling rotor that, along with the shunt regulator, eliminates the need for yaw and/or electronic shutdown in high winds. This is an ideal machine for telecoms, military, remote cabins and other similar applications. The 600 is quickly replacing many under-performing and poorly backed turbines in the 300 to 900 Watt range on the African continent. It is available in 12, 24, 48 and 200VDC, user-adjustable outputs.

Specifications

• Rated Output:  600W
• Maximum Power:  650w at 14ms -1
• Rated Wind Speed:  13ms -1
• Cut in Windspeed:  2.8ms -1
• Rotor Diameter:  1.5m
• Number of Blades:  6
• Blade Material:  Fiber glass
• Tower Top Mass:  30kg
• Tower Height:  9-15m
• Tower Type:  Scissor or Guyed
• Overspeed Protection:  Rotor Turbulence
• Generator Type:  Permanent-magnet Axial flux brushless
• Output Voltage:  12, 24, 36*,48, 110* and 200 Vdc
• Controller Type:  Charge or Dump

  *Available on request.

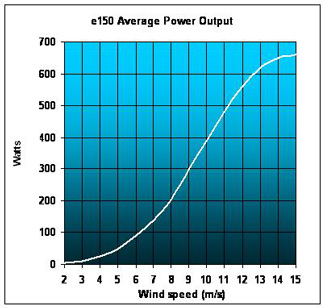

  The e150 can produce a maximum power of 650W. This is >50A charging current into the battery.

  Wind Speed (m/s)	Yearly - kWh
  	12V	24V	48V	200V
  2	35	43	50	53
  6	824	1000	1177	1236
  8	1441	1750	2059	2162
  9	1688	2050	2412	2533
  10	1870	2271	2672	2806




Data Sheet (PDF, 714K)

User Manual (PDF, 899K)

back to top

e220 (800W)

The Kestrel e220 employs a unique variable-pitch 2.2 meter (7.2') fiberglass rotor driving a discoid axial flux alternator, which allows for high low wind efficiency and full rated power output in all winds at or above 12 M/S (25.76 MPH) without energy-robbing yawing or electronic shutdown. Because of its large swept area and high efficiency, the e220 is a great choice for low wind sites, yet is equally at home in high winds. Suggested uses include battery charging, direct water pumping, resistance heating and utility inter-tie (with an approved inverter).

Specifications

• Rated Output:  800W
• Maximum Power:  850W at 13ms -1
• Rated Wind Speed:  12.5ms -1
• Cut in Windspeed: 2.5ms -1
• Rotor Diameter :  2.2m
• Number of Blades:  3
• Blade Material:  Fiber glass
• Tower Top Mass:  45kg
• Tower Height:  9-15m
• Tower Type:  Scissor or Guyed
• Overspeed Protection:  Pitch Control
• Generator Type:  Permanent-magnet Axial flux brushless
• Output Voltage:  12, 24, 36*,48, 110* and 200 Vdc
• Controller Type:  Charge or Dump

*Available on request.

The Kestrel e220 produces a maximum power of 850W.

Data Sheet (PDF, 678K)

User Manual (PDF, 896K)

e300i (1KW)

The next generation e300 i exemplifies the beauty of sophisticated aerodynamic design. The e300 i is compact and unobtrusive making it suitable for urban living. The e300 i is suitable in all wind classes and has a low start-up torque that requires minimal wind to generate energy.  Modern living demands more applications that require energy usage. Every feature of the e300 i optimizes renewable energy generation, increasing energy efficiency and cost saving.

The three aerofoil blades, with a diameter of 3.0m, are managed by a passive pitch control system that allows the e300 i to continuously generate usable energy in wind speeds that exceed rated wind speed.  This is one of the factors that contribute to the e300 i being one of the best machines in its class in terms of overall energy harvest on an annualized basis. The e300 i advanced design moderates noise emissions effectively, making it an inconspicuous power source in all installations and environments.

Specifications

• Rated Output:  1000W
• Maximum Power:  1150W at 12ms -1
• Rated Wind Speed:  11ms -1
• Cut in Windspeed:  2.5ms -1
• Rotor Diameter:  3m
• Number of Blades:  3
• Blade Material:  Fiber glass
• Tower Top Mass:  75kg
• Tower Height:  9-15m
• Tower Type:  Scissor or Guyed
• Overspeed Protection:  Pitch Control
• Generator Type:  Permanent-magnet Axial flux brushless
• Output Voltage:  12, 24, 36*,48, 110* and 200 Vdc
• Controller Type:  Charge or Dump

*Available on request.

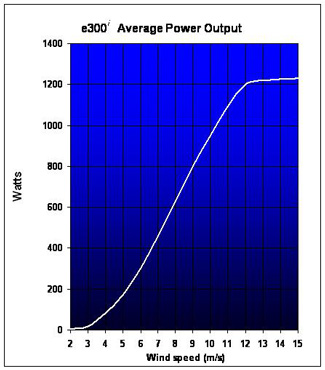

The KestreL300 i produces a maximum power of 1200W.

Data Sheet (PDF, 690K)

User Manual (PDF, 1.6M)

back to top

e400i (3KW)

The new e400 i is the next level in small wind turbines. By optimizing renewable power output and performance, the efficiency of the e400 i makes it a valuable asset for fulfilling energy requirements.

Modern living requires a massive amount of energy that is depleting fossil fuels. The e400 i generates regulated and optimized energy for increased energy efficiency that is adaptable to all installation requirements.

The three aerofoil blades are managed by an advanced passive pitch control system that allows the e400 i to continuously generate rated energy in wind speeds that exceed rated wind speed.

The three blade design, with a diameter of 4m, moderates noise emissions effectively, making it an unobtrusive and reliable method of renewable energy generation in all installations and environments. The e400 i advanced direct drive alternator incorporates three main shaft bearings for longevity and increased reliability.

Specifications

• Rated Output:  3000W
• Maximum Power:  3300w at 12ms -1
• Rated Wind Speed:  11ms -1
• Cut in Wind Speed:  2.8ms -1
• Rotor Diameter:  4m
• Number of Blades:  3
• Blade Material:  Fiber glass
• T ower Top Mass :  150kg
• Tower Height:  12-15m
• Tower Type:  Tripod
• Overspeed Protection:  Pitch Control
• Generator Type:  Permanent-magnet Axial flux brushless
• Output Voltage:  48*,200 and 300 Vdc
• Controller Type:  Charge ONLY

*Available on request.

The Kestrel e400i produces a maximum power of 3200W.

Data Sheet (PDF, 721K)

User Manual (PDF, 2M)
